MCS 260 Fall 2021
|Transport||Transmit GET / to 188.8.131.52|
|Network||Deliver this packet to 184.108.40.206|
|Link||Send this ethernet frame to the router|
|Physical||Change voltages on these wires...|
We'll discuss making Application-level network requests in Python.
We focus specifically on retrieving data (documents, etc.) from a Uniform Resource Locator or URL.
urllib module in Python supports this. It is primarily focused on HTTP, HTTPS, and local files.
HTTP allows many types of requests. For example:
Today we'll only use GET.

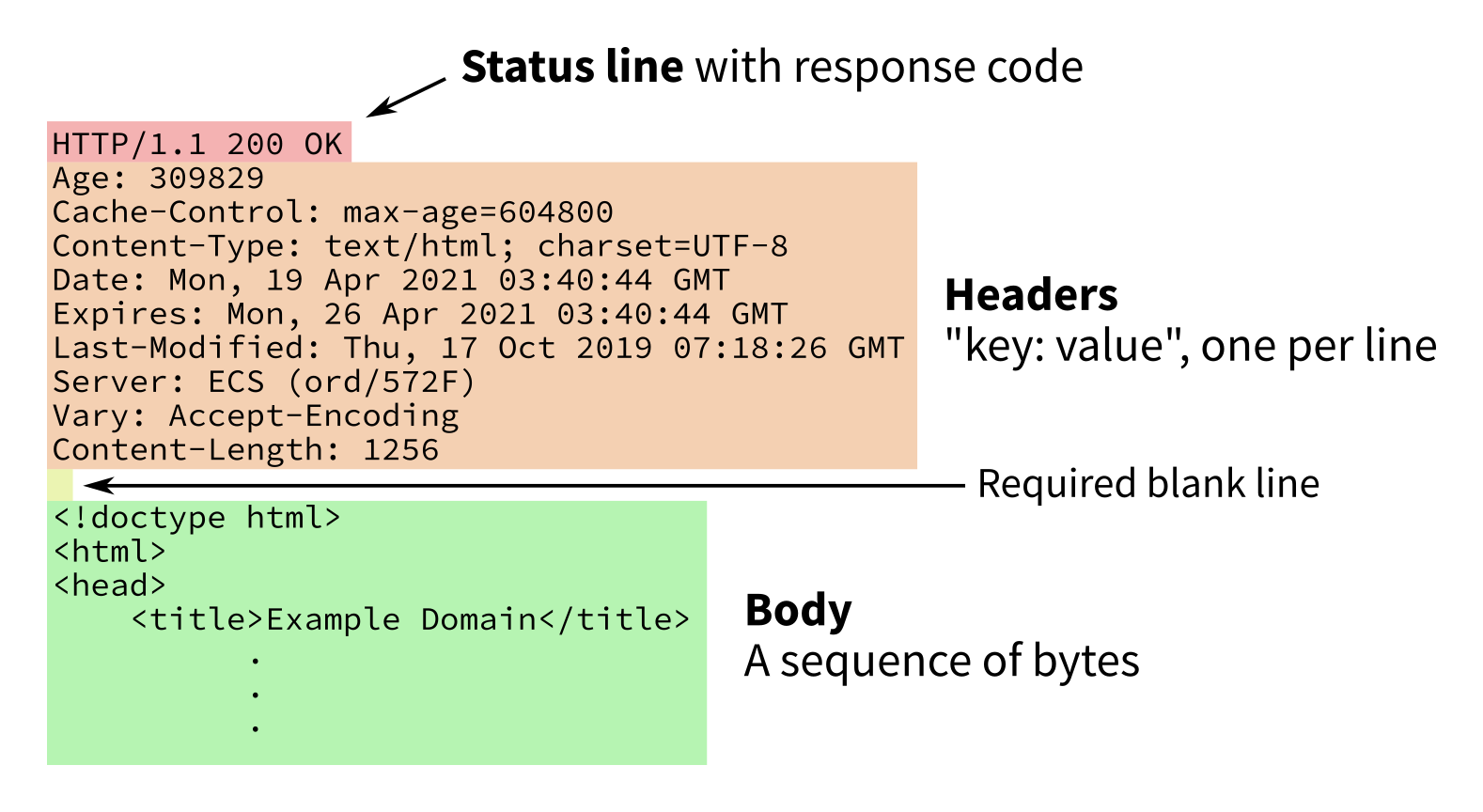

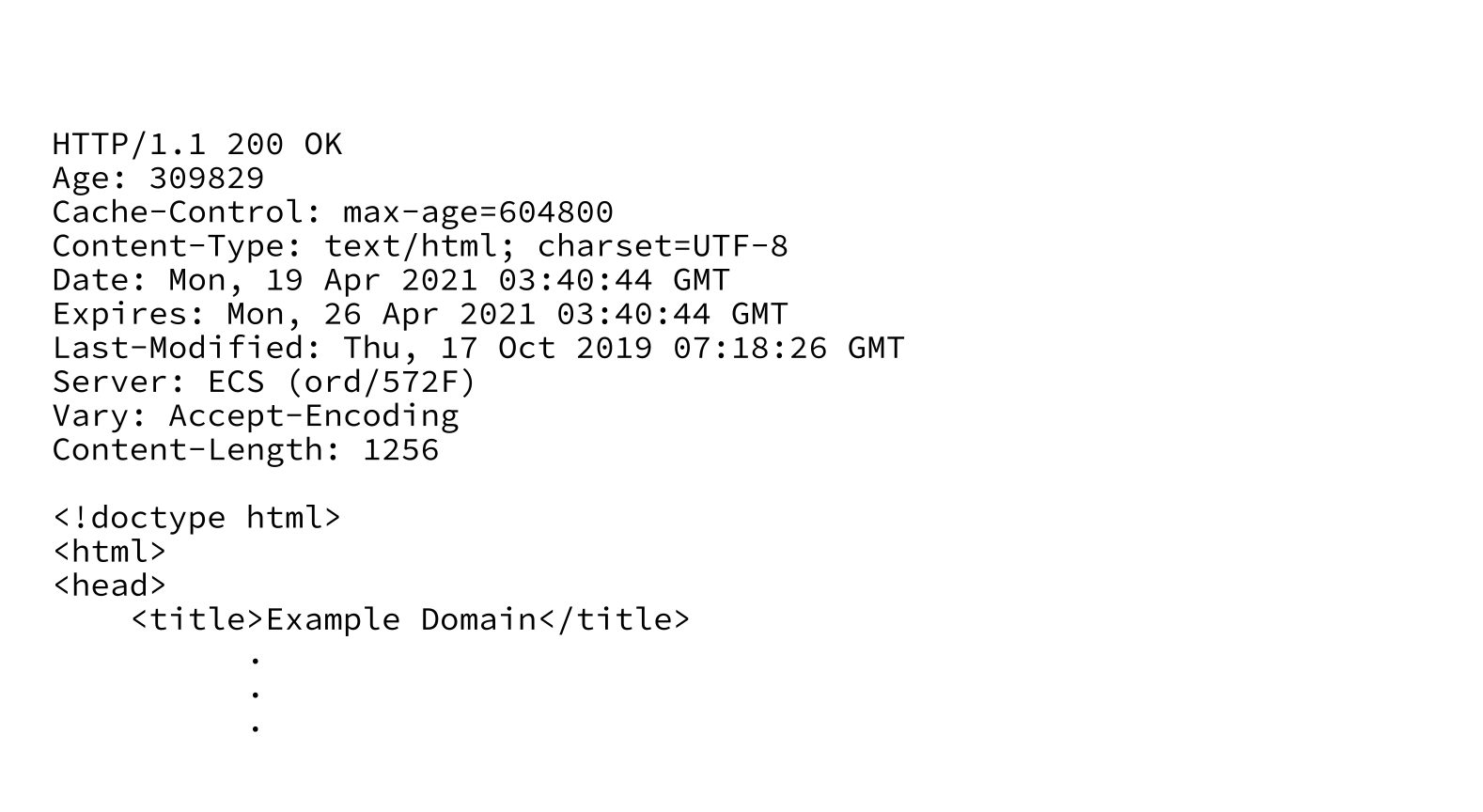

Response consists of a numeric status code, some headers (
key: value pairs, one per line), then a payload.
E.g. GET a web page, the HTML will be in the payload.
There are lots of codes; first digit gives category:
Response to GET
urllib.request to get the most convenient functions for loading URLs.
urllib.request.urlopen(url) to open the URL
url using GET. It returns a response object.
Response objects behave like read-only files, and should be closed with
If a 4xx or 5xx response is received, or if contacting the host fails, a
urllib.error.URLError exception is raised.
A HTTP response object
res.status— the status code
res.geturl()— returns the final URL (maybe not the one requested, if redirection used)
res.read()— returns the payload as a
res.headers— dict-like object storing the HTTP headers (not HTML header!)
res.headers.get_content_charset()— Return payload encoding, if known
Often the payload is meant to be a string, but you will always receive it as bytes.
To recover that string from the
bytes object returned by
res.read(), you need to call the
.decode(...) method, e.g.
enc = res.headers.get_content_charset() # probably "UTF-8" response_string = res.read().decode(enc) # bytes -> str
An application programming interface or API is a structured way for computer programs to talk to each other.
APIs often use the network, and often use HTTP.
Some are available freely to anyone.
urllib.request.urlopen is a great way to fetch data from HTTP APIs.
Example for today: A free dice rolling JSON API* by Steve Brazier at
http://roll.diceapi.com/json/d6— roll one six-sided die
http://roll.diceapi.com/json/3d6— roll three six-sided dice
http://roll.diceapi.com/json/4d12— roll four twelve-sided dice
* This API could disappear at any moment. It worked on November 9, 2021.
HTTP GET requests can send an associative array of parameters. For example, to send the dictionary
http://example.com/ the URL would be
The parameter list begins with
? and has
& between name=value pairs. It gets tricky when values or names have spaces, but
urllib.parse.urlencode can convert a dictionary to a suitable string.
cat-fact.herokuapp.com hosts an API* created by CS undergrad student Alex Wohlbruck for retrieving facts about cats (and other animals). E.g.
https://cat-fact.herokuapp.com/facts/random?amount=2— two random facts about cats
https://cat-fact.herokuapp.com/facts/random?animal_type=dog&amount=1— one random fact about dogs
* This API could disappear at any moment. It worked on November 10, 2020.
