Lecture 38

Using Beautiful Soup

MCS 275 Spring 2023
Emily Dumas

Not this kind of beautiful soup

Lecture 38: Using Beautiful Soup

Reminders and announcements:

  • Please complete your course evaluations.
  • Project 4 is due 6pm on Friday 28 April
  • Remember to install beautifulsoup4 with

                python3 -m pip install beautifulsoup4

    so you'll be ready for Worksheet 15!

Homework 14

Available now. Due Tuesday at Noon. It's the last homework!

BS4 basics


        soup = bs4.BeautifulSoup(fp_or_str, "html.parser") # parse!
        str(soup) # the HTML
        soup.prettify() # prettier HTML
        soup.title # first (and only) title tag
        soup.p  # first p tag
        soup.find("p") # first p tag (alternative)
        soup.p.em  # first em tag within the first p tag
        soup.find_all("a") # list of all a tags


Working with tags


        str(tag) # HTML for this tag and everything inside it
        tag.name # name of the tag, e.g. "a" or "ul"
        tag.attrs # dict of tag's attributes
        tag["href"] # get a single attribute
        tag.text # All the text nodes inside tag, concatenated
        tag.string # If tag has only text inside it, returns that text
                   # But if it has other tags as well, returns None
        tag.parent # enclosing tag
        tag.contents # list of the children of this tag
        tag.children # iterable of children of this tag
        tag.banana # first descendant banana tag (sub actual tag name!)
        tag.find(...) # first descendant meeting criteria
        tag.find_all(...) # descendants meeting criteria
        tag.find_next_sibling(...) # next sibling tag meeting criteria


Searching

Arguments supported by all the find* methods:


        tag.find_all(True) # all descendants
        tag.find_all("tagname") # descendants by tag name
        tag.find_all(href="https://example.com/") # by attribute
        tag.find_all(class_="post") # by class
        tag.find_all(re.compile("^fig")) # tag name regex match
        tag.find_all("a",limit=15) # first 15 a tags
        tag.find_all("a",recursive=False) # all a *children*


Also work with find(), find_next_sibling(), ...

Simulating CSS

soup.select(SELECTOR) returns a list of tags that match a CSS selector, e.g.


        soup.select(".wide") # all tags of class "wide"

        # ul tags within divs of class messagebox
        soup.select("div.messagebox ul")


There are many CSS selectors and functions we haven't discussed, so this gives a powerful alternative search syntax.


        # all third elements of unordered lists
        soup.select("ul > li:nth-of-type(3)")


The CSS selector examples here were based on those in the Beautiful Soup documentation.

Sketch of a scraper


        from urllib.request import urlopen
        from bs4 import BeautifulSoup
        import csv

        # grab and parse the HTML
        with urlopen("https://acme-onions.com/strategy/") as fp:
            soup = BeautifulSoup(fp,"html.parser")

        # find the div we care about
        plansdiv = soup.find("div",id="secret_plans")

        # save all links in that div to a CSV file
        with open("plan_links.csv") as outfile:
            writer = csv.writer(outfile)
            writer.writerow(["dest","linktext"])
            for anchor in plansdiv.find_all("a"):
                writer.writerow([anchor["href"], anchor.text])


Example scraper

Let's try to extract data about the UIC academic calendar.

HTML tables

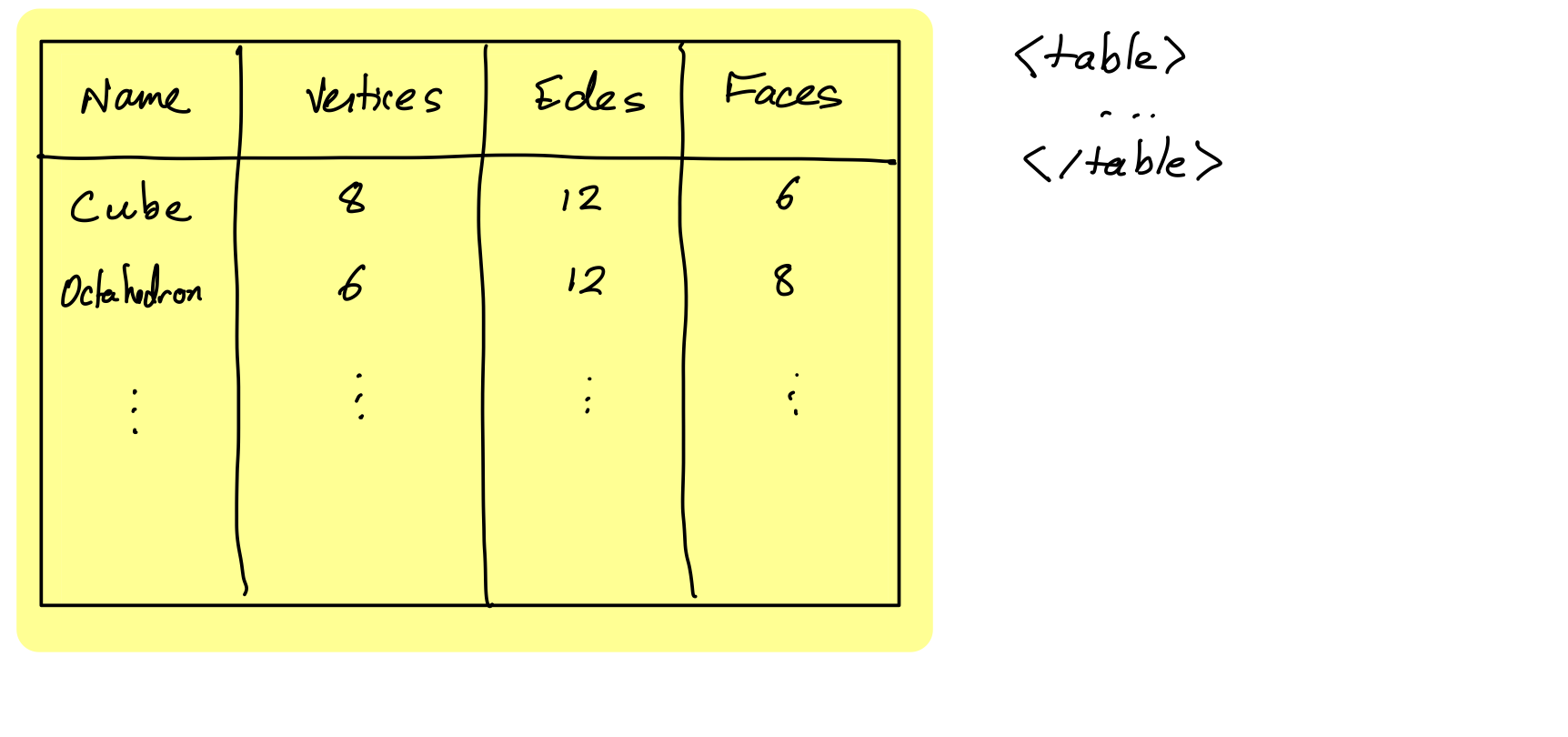

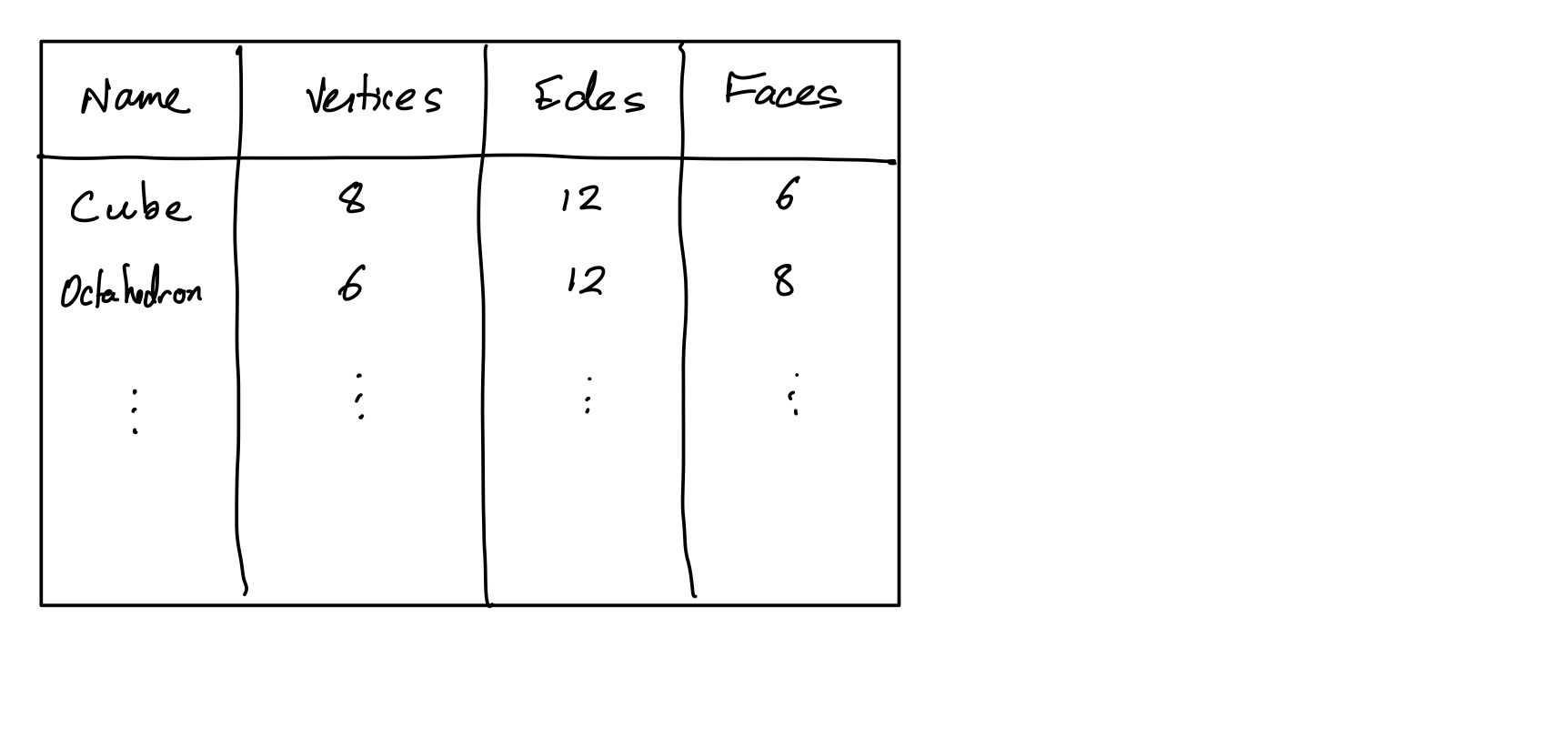

HTML table tag represents a table made up of rectangular cells arranged in aligned rows and columns.

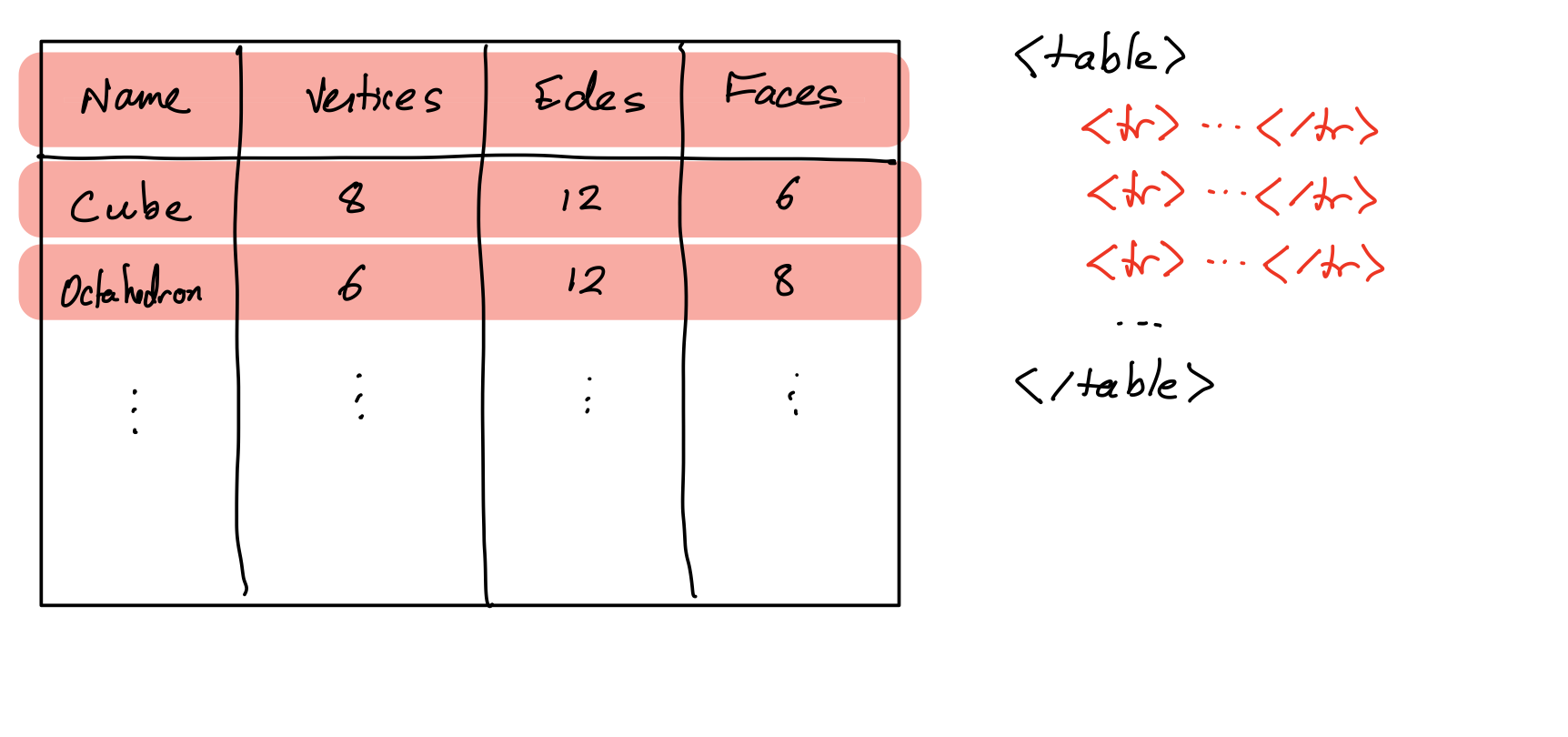

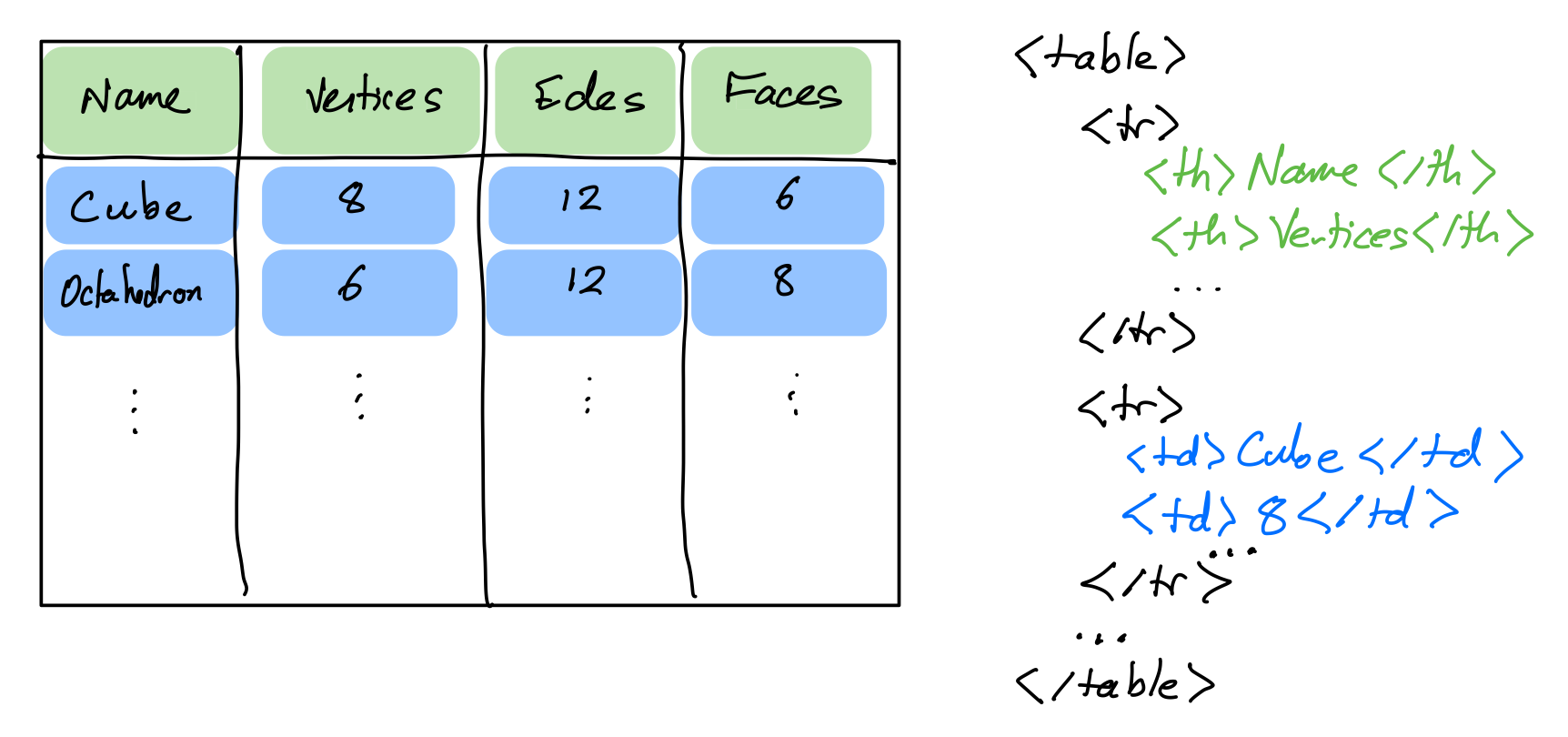

HTML table tags

  • table - entire table
  • tr - row (inside a table)
  • td - data cell (inside a row)
  • th - header cell (inside a row)

Scraper tips

  • Develop using a local snapshot of the HTML
  • Avoid complicated transformation at first; try to faithfully extract the data into a structured format
  • Be mindful of maintenance cost (e.g. time); keeping a scraper working as a site that changes over time is difficult. Does size/value of data justify it? [1, 2]
  • Try to minimize dependence on markup details that seem most likely to change

References

Revision history

  • 2023-04-22 Last year's lecture on this topic finalized
  • 2023-04-20 Updated for 2023
